Aluminum Windows
Series 220

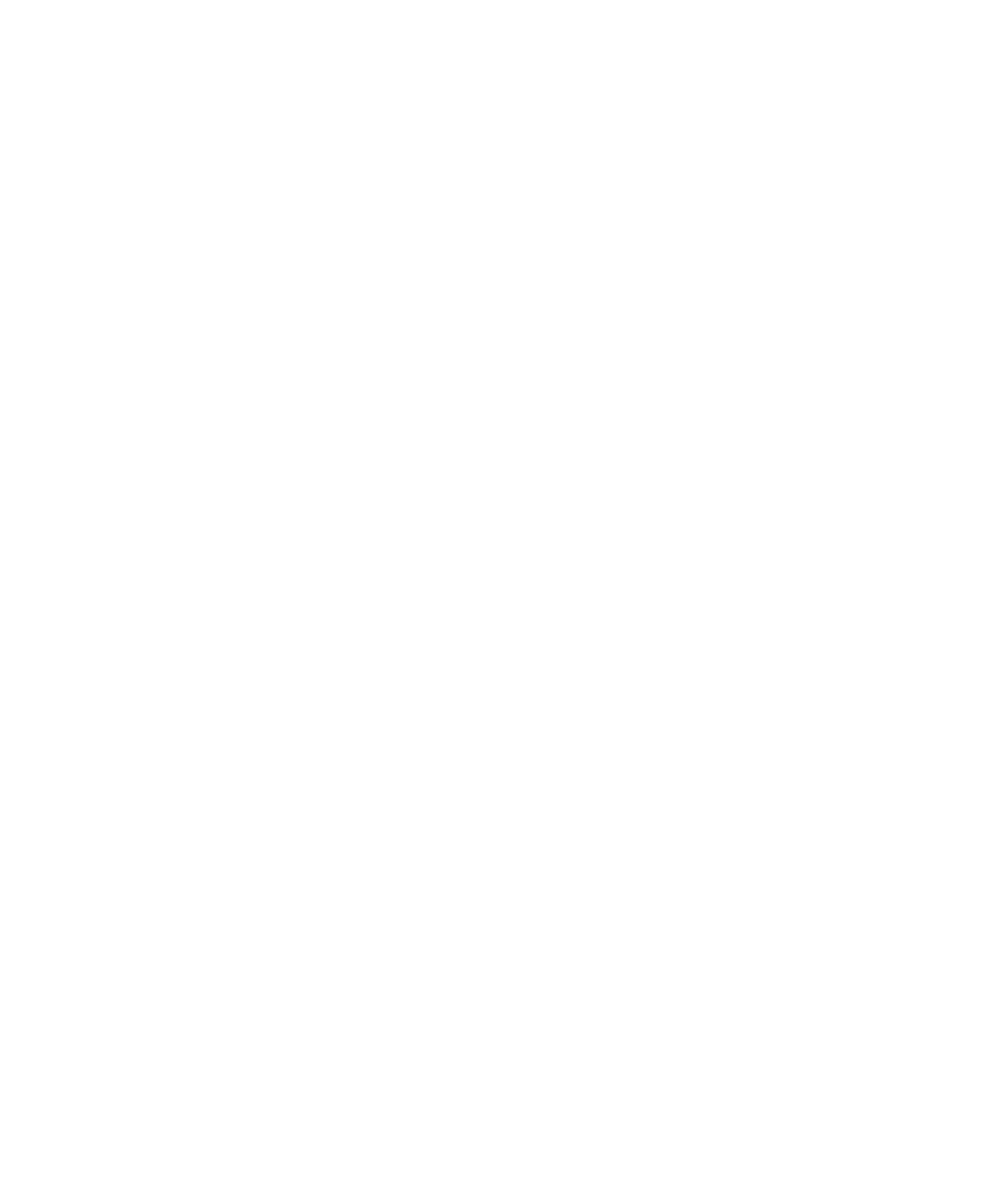

Casement Window
Series 220
Key Features
- Thermally broken frame
- Multiple configuration options
- NFRC rated
- Multiple finish options
- Standard and custom glazing options
- Multiple accessory options
Finish Capabilities
AAMA 2604 and 2605 Paint
Custom colors available upon request
Clear & Dark Bronze Anodized
Additional anodize options available upon request
Glazing Options
1" Insulated Glazing
¼” Single Glazing
Structural Test
| Type | Test Protocol | Product Designation | Test Size | Design Pressure | Structural Test Pressure | Air Infiltration | Water Resistance Test Pressure |
|---|---|---|---|---|---|---|---|
| Casement | AAMA 11 | CW - PG60 | 99x60 | 60 psf | 90 psf | 0.06 | 15 psf |
| Type | Casement |
|---|---|
| Test Protocol | AAMA 11 |
| Product Designation | CW - PG60 |
| Test Size | 99x60 |
| Design Pressure | 60 psf |
| Structural Test Pressure | 90 psf |
| Air Infiltration | 0.06 |
| Water Resistance Test Pressure | 15 psf |
Downloadable Files
| Product Brochures |
|---|
| Product Brochure PDF |
| Paint Brochure PDF |
| Installation Instructions |
| Installation Instructions PDF |
| Product Specific |
| Product Data Sheet PDF |
| Product Details PDF | DWG |
| S220 Specification DOC |
| Accessories |
|---|
| Sub Frame PDF | DWG |
| Square Panning PDF | DWG |
| Nail Fin PDF | DWG |
| Stucco Fin PDF | DWG |
| Mullions PDF | DWG |
| Interior Trim PDF | DWG |
| Resources |
| Standard Terms & Conditions PDF |
