Access Doors & Panel Division
SD 2200
Doors
SD 2200
Our SD 2200 2" depth dual gasket doors come in single and twin, positive inswing and negative outswing configurations.
Key Features
- Thermal & Non Thermal frame options
- Insulated with BASF autofroth 2 part expandable polyurethane foam
- Foam In Fill 13.34 R Value
- Wide range of steel and aluminum skin material options
- Single doors independently tested from 0" through 20" water column, with viewports and hardware installed, per ASTM E 331
- Twin doors available for equipment access (Contact WinTech for job specific performance requirements)
- Mullion Options: Applied or removable
- FDA compliant EPDM gaskets standard
- Extruded aluminum frames for increased strength and durability
- Available with mineral wool and fiberglass insulation
- Powder coat paint options
- Wide range of Allegis and Ventlock hardware options available to cover your project needs
- Factory prep for hardware or fully installed hardware options
- Continuous Stainless Steel piano hinges or XYZ adjustable hinge options
- Custom sizes
- Multiple view port options
- Installed test ports available
Downloadable Files
| Product Specific |
|---|

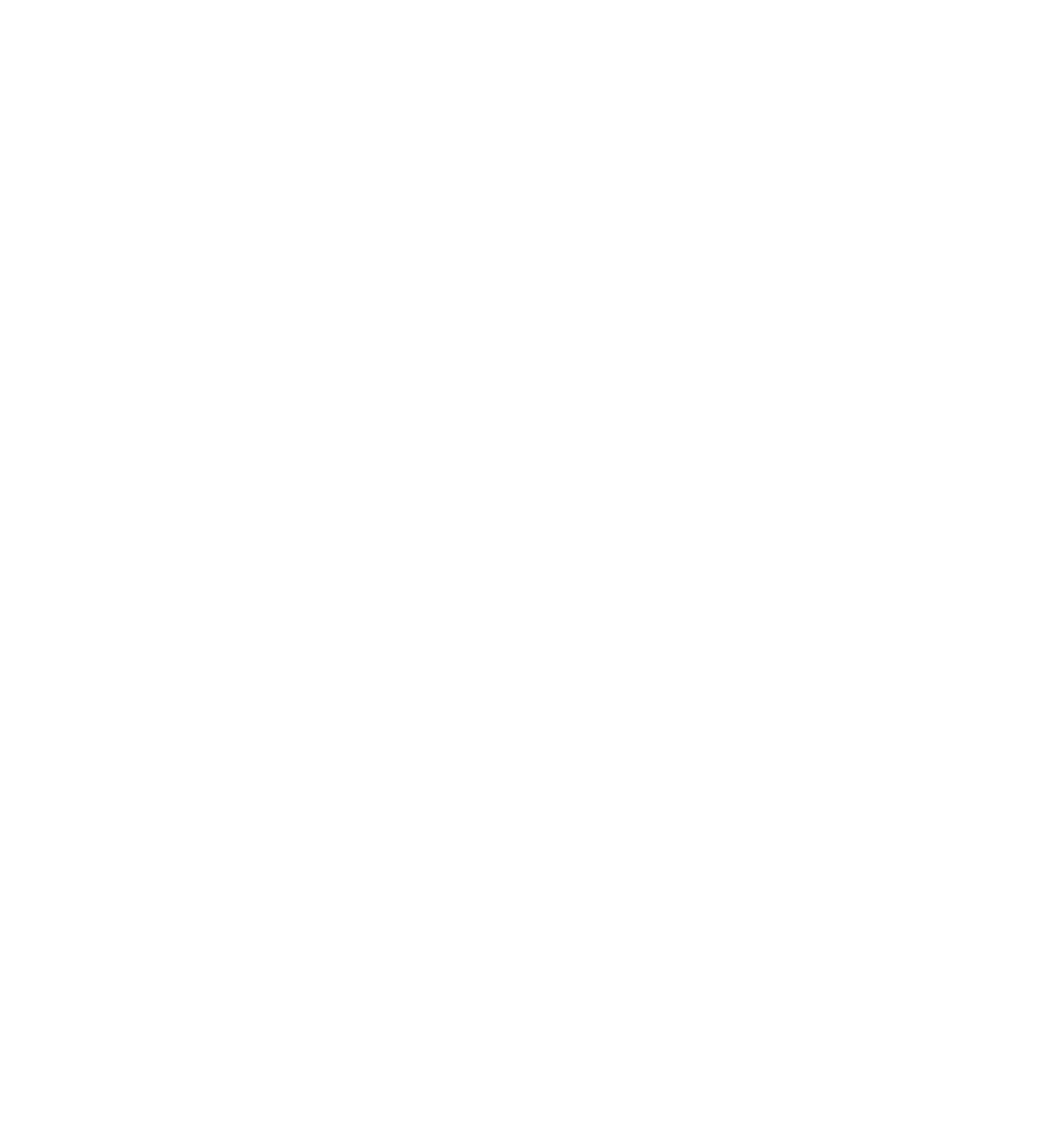

| Positive Inswing Details PDF | DWG |
| Negative Outswing Details PDF | DWG |
| Positive Inswing Product Data PDF |
| Negative Outswing Product Data PDF |
| SD Access Doors Specification DOC |
| Resources |
|---|
| Doors & Panels Product Catalog PDF |
| Quote Form XLS |
| Installation Instructions PDF |
| Warranty PDF |
| Door Operational Temps PDF |
| Positive Inswing Test Report PDF |
| Negative Outswing Test Report PDF |
| Positive Inswing 3D STP |
| Negative Outswing 3D STP |
| Door Sizing Tool XLS |
| Standard Terms & Conditions PDF |
