Projected Image

Aluminum

Fixed Windows

See an overview below of all of WinTech's aluminum fixed windows.

Fixed Window

Series 251

Key Features

  • Thermally broken frame
  • Integral perimeter nailing fin
  • Multiple configuration options
  • NFRC rated
  • Multiple finish options
  • Standard and custom glazing options

Finish Capabilities

AAMA 2604 and 2605 Paint

Custom colors available upon request

Clear & Dark Bronze Anodized

Additional anodize options available upon request

Glazing Options

1" Insulated Glazing

¼” Single Glazing

Downloadable Files

S251 Drawing

Fixed Window

Series 220

Key Features

  • Thermally broken frame
  • Multiple configuration options
  • NFRC rated
  • Multiple finish options
  • Standard and custom glazing options
  • Multiple accessory options

Finish Capabilities

AAMA 2604 and 2605 Paint

Custom colors available upon request

Clear & Dark Bronze Anodized

Additional anodize options available upon request

Glazing Options

1" Insulated Glazing

¼” Single Glazing

Structural Test

TypeTest ProtocolProduct DesignationTest SizeDesign PressureStructural Test PressureAir InfiltrationWater Resistance Test Pressure
FixedAAMA 11CW - PG6060x7260 psf90 psf< 0.0215 psf
TypeFixed
Test ProtocolAAMA 11
Product DesignationCW - PG60
Test Size60x72
Design Pressure60 psf
Structural Test Pressure90 psf
Air Infiltration< 0.02
Water Resistance Test Pressure15 psf

Downloadable Files

Product Brochures
Product Brochure PDF
Paint Brochure PDF
Installation Instructions
Installation Instructions PDF
Product Specific
Product Data Sheet PDF
Product Details PDF |  DWG
S220 Specification DOC
Accessories
Sub Frame PDF |  DWG
Square Panning PDF |  DWG
Nail Fin PDF |  DWG
Stucco Fin PDF |  DWG
Mullions PDF |  DWG
Interior Trim PDF |  DWG
Resources
Standard Terms & Conditions DOC
S220 Drawing

Fixed Window

Series 3250

Key Features

  • Thermally broken frame
  • Multiple configuration options
  • NFRC rated
  • Multiple finish options
  • Standard and custom glazing options
  • Multiple accessory options

Finish Capabilities

AAMA 2604 and 2605 Paint

Custom colors available upon request

Clear & Dark Bronze Anodized

Additional anodize options available upon request

Glazing Options

1" Insulated Glazing

¼” Glazing Options

Structural Test

Series Name/ConfigurationProduct DesignationAir InfiltrationWater Resistance Test Pressure
3250 - FixedCW - PG600.0110 psf
Series Name/Configuration3250 - Fixed
Product DesignationCW - PG60
Air Infiltration0.01
Water Resistance Test Pressure10 psf

Downloadable Files

Product Brochures
Product Brochure PDF
Paint Brochure PDF
Installation Instructions
Installation Instructions PDF
Product Specific
Product Data Sheet PDF
Product Details: PDF |  DWG
3250 Specification DOC
Accessories
Sub Frame PDF |  DWG
Heavy Duty Sub Frame PDF |  DWG
Square Panning PDF |  DWG
Nail Fin PDF |  DWG
Mullions PDF |  DWG
Interior Trim PDF |  DWG
Resources
Standard Terms & Conditions DOC
3250 Drawing

Fixed Window

Series 3220

Key Features

  • Thermally broken frame
  • Multiple configuration options
  • NFRC rated
  • Multiple finish options
  • Standard and custom glazing options
  • Multiple accessory options

Finish Capabilities

AAMA 2604 and 2605 Paint

Custom colors available upon request

Clear & Dark Bronze Anodized

Additional anodize options available upon request

Glazing Options

1" Insulated Glazing

¼” Glazing Options

Structural Test

Series Name/ConfigurationProduct DesignationAir InfiltrationWater Resistance Test Pressure
3220 - Fixed Center SetCW - PG600.0312 psf
Series Name/Configuration3220 - Fixed Center Set
Product DesignationCW - PG60
Air Infiltration0.03
Water Resistance Test Pressure12 psf

Downloadable Files

Product Brochures
Product Brochure PDF
Paint Brochure PDF
Installation Instructions
Installation Instructions PDF
Product Specific
Product Data Sheet PDF
Product Details: PDF |  DWG
3220 Specification DOC
Accessories
Sub Frame PDF |  DWG
Heavy Duty Sub Frame PDF |  DWG
Square Panning PDF |  DWG
Nail Fin PDF |  DWG
Mullions PDF |  DWG
Interior Trim PDF |  DWG
Resources
Standard Terms & Conditions DOC

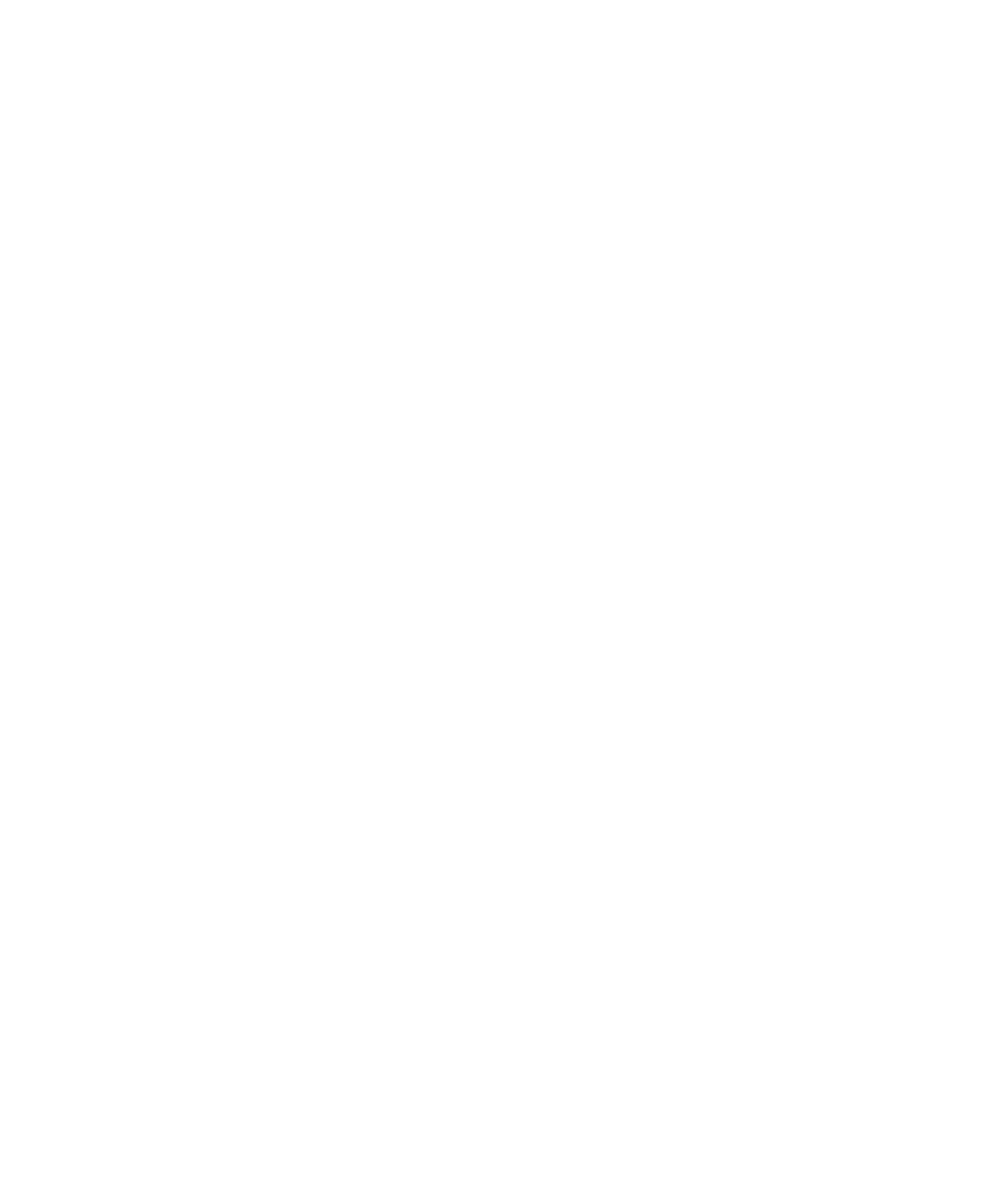

3220 Drawing

Fixed Window

Series 350

Key Features

  • Thermally broken frame
  • Multiple configuration options
  • NFRC rated
  • Multiple finish options
  • Standard and custom glazing options
  • Multiple accessory options

Finish Capabilities

AAMA 2604 and 2605 Paint

Custom colors available upon request

Clear & Dark Bronze Anodized

Additional anodize options available upon request

Glazing Options

1" Insulated Glazing

¼” Glazing Options

Structural Test

Series Name/ConfigurationAAMA RatingAirWater
350 - FixedCW - PG5800.0112 psf
Series Name/Configuration350 - Fixed
Product DesignationCW - PG580
Air Infiltration0.01
Water Resistance Test Pressure12 psf

Downloadable Files

Product Brochures
Product Brochure PDF
Paint Brochure PDF
Installation Instructions
Installation Instructions PDF
Product Specific
Product Data Sheet PDF
Product Details: PDF |  DWG
350 Specification DOC
Accessories
Sub Frame PDF |  DWG
Heavy Duty Sub Frame PDF |  DWG
Square Panning PDF |  DWG
Nail Fin PDF |  DWG
Mullions PDF |  DWG
Interior Trim PDF |  DWG
Resources
Standard Terms & Conditions DOC
350 Drawing
