Projected Image

Aluminum

Casement Windows

See an overview below of all of WinTech's aluminum casement windows.

Casement Window

Series 251 Outswing

Key Features

  • Thermally broken frame
  • Integral perimeter nailing fin
  • Multiple configuration options
  • NFRC rated
  • Multiple finish options
  • Standard and custom glazing options

Finish Capabilities

AAMA 2604 and 2605 Paint

Custom colors available upon request

Clear & Dark Bronze Anodized

Additional anodize options available upon request

Glazing Options

1" Insulated Glazing

¼” Single Glazing

Downloadable Files

Product Brochures
Paint Brochure PDF
Installation Instructions
Installation Instructions PDF
Product Specific
Product Data Sheet PDF
Product Details PDF |  DWG
S251 Specification DOC
Accessories
Mullions PDF |  DWG
S251 Drawing

Casement Window

Series 220

Key Features

  • Thermally broken frame
  • Multiple configuration options
  • NFRC rated
  • Multiple finish options
  • Standard and custom glazing options
  • Multiple accessory options

Finish Capabilities

AAMA 2604 and 2605 Paint

Custom colors available upon request

Clear & Dark Bronze Anodized

Additional anodize options available upon request

Glazing Options

1" Insulated Glazing

¼” Single Glazing

Structural Test

TypeTest ProtocolProduct DesignationTest SizeDesign PressureStructural Test PressureAir InfiltrationWater Resistance Test Pressure
CasementAAMA 11CW - PG6099x6060 psf90 psf0.0615 psf
TypeFixed
Test ProtocolAAMA 11
Product DesignationCW - PG60
Test Size99x60
Design Pressure60 psf
Structural Test Pressure90 psf
Air Infiltration0.06
Water Resistance Test Pressure15 psf

Downloadable Files

Product Brochures
Product Brochure PDF
Paint Brochure PDF
Installation Instructions
Installation Instructions PDF
Product Specific
Product Data Sheet PDF
Product Details PDF |  DWG
S220 Specification DOC
Accessories
Sub Frame PDF |  DWG
Scroll Panning PDF |  DWG
Square Panning PDF |  DWG
Nail Fin PDF |  DWG
Stucco Fin PDF |  DWG
Mullions PDF |  DWG
Interior Trim PDF |  DWG
S220 Drawing

Casement Window

320 Out & Inswing

Key Features

  • Thermally broken frame
  • Multiple configuration options
  • NFRC rated
  • Multiple finish options
  • Standard and custom glazing options
  • Multiple accessory options

Finish Capabilities

AAMA 2604 and 2605 Paint

Custom colors available upon request

Clear & Dark Bronze Anodized

Additional anodize options available upon request

Glazing Options

1" Insulated Glazing

¼” Glazing Options

Structural Test

Series Name/ConfigurationProduct DesignationAir InfiltrationWater Resistance Test Pressure
320 - Casement OutCW - PG800.0312 psf
320 - Casement InCW - PG800.0112 psf
Series Name/Configuration320 - Casement Out320 - Casement In
Product DesignationCW - PG80CW - PG80
Air Infiltration0.030.01
Water Resistance Test Pressure12 psf12 psf

Downloadable Files

Product Brochures
Product Brochure PDF
Paint Brochure PDF
Installation Instructions
Installation Instructions PDF
Accessories
Sub Frame PDF |  DWG
Heavy Duty Sub Frame PDF |  DWG
Scroll Panning PDF |  DWG
Square Panning PDF |  DWG
Nail Fin PDF |  DWG
Mullions PDF |  DWG
Interior Trim PDF |  DWG
Product Specific
Casement Outswing
Product Data Sheet PDF
Details PDF |  DWG
Roto Details PDF |  DWG
320 Specification DOC
Casement Inswing
Product Data Sheet PDF
Details PDF |  DWG
320 Specification DOC
320 Drawing

Casement Window

Zvent

Key Features

  • Thermally broken framing with industry leading U factors (see chart below)
  • 1" glazing pocket shipped open for project glazing match
  • Painted and anodized finish options
  • Extruded aluminum screen available
  • Cam locks or lift locks with 4 bar arms
  • Designed to fit aluminum storefront and curtainwall systems

Finish Capabilities

AAMA 2604 and 2605 Paint

Custom colors available upon request

Clear & Dark Bronze Anodized

Additional anodize options available upon request

Performance Chart

Center of Glass U Factor:0.20.240.290.320.360.40.44
Whole Window U Factor:0.280.310.330.380.410.450.48
Center of Glass U Factor:Whole Window U Factor:
0.20.28
0.240.31
0.290.33
0.320.38
0.360.41
0.40.45
0.440.48

Downloadable Files

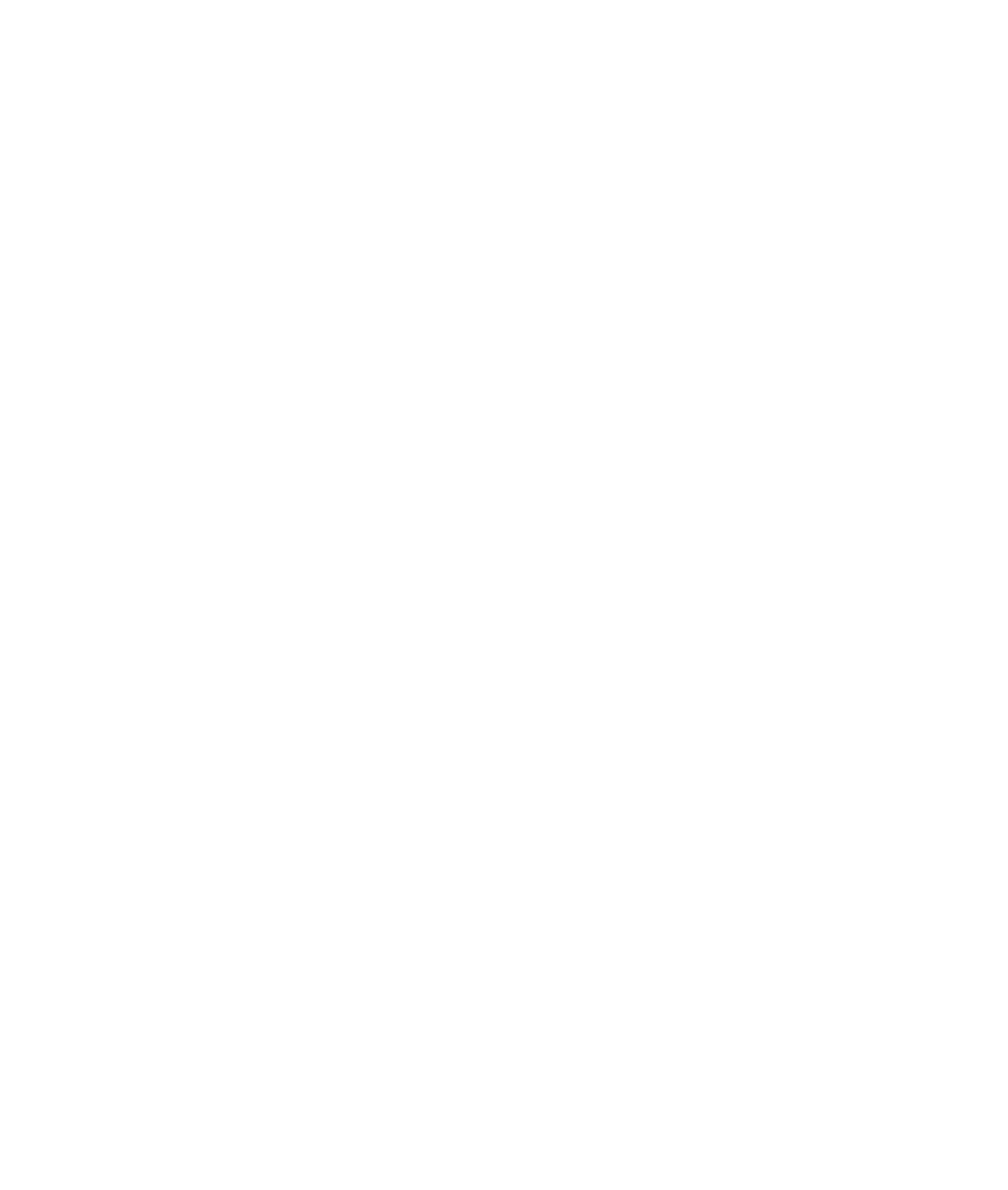

Zvent Drawing
